Plastic recycling process pyrolysis plant description in details

Plastic recycling process pyrolysis plant product introduction

Update Time:2018-3-6  |   Plastic pyrolysis plant

Plastic recycling process pyrolysis plant
Plastic recycling process pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

plastic pyrolysis plant

Plastic recycling process pyrolysis plant

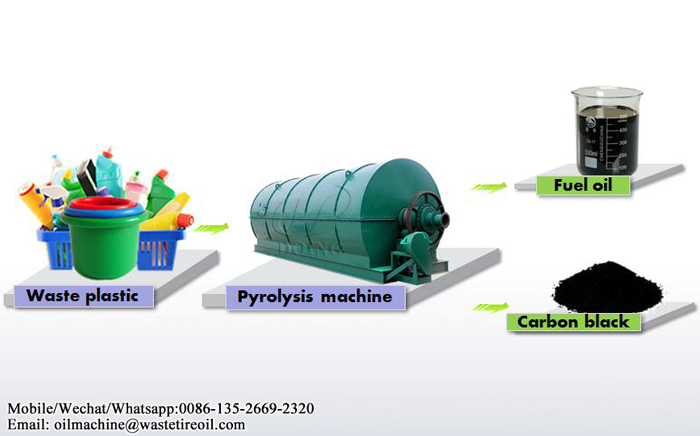

Plastic recycling process pyrolysis plant can convert the plastic waste to energy, such as plastic pyrolysis crude oil, carbon black and combustible gas. Those products are popular in the market, and they also have a great market value.

In recent years, the developing economy and the increasing level of consumption cause the consumption of the plastic products becomes larger and larger, thus the amount of waste plastic is also huge.
pyrolysis of plastic

Plstic recycling process pyrolysis plant

Plastic waste treatment means a lot to environmental protection and the healthy development of plastic industry, however, in fact, most of the waste plastic products are not well recycled because of the technology and the policy. According to statistics, only 5%-25% of the plastic waste get well recycled, and most of the plastic packing materials are remains unsettled. The packing materials have a shorter service life and there are several kinds of the packing materials, which make the recycling of plastic packing material much more difficult.

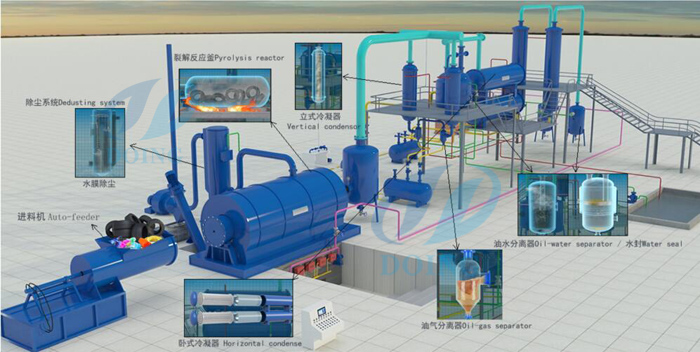

Plastic recycling process pyrolysis plant working process

pyrolysis plant

Plastic recycling process pyrolysis plant working process

1.    Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste plastic will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the plastics can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get crude oil, the temperature will be low, at this time, carbon black will be discharged automatically.
Last, when the temperature falls to 100 degree Celsius, After all these steps, you can start another batch.

Plastic recycling process pyrolysis plant final product application

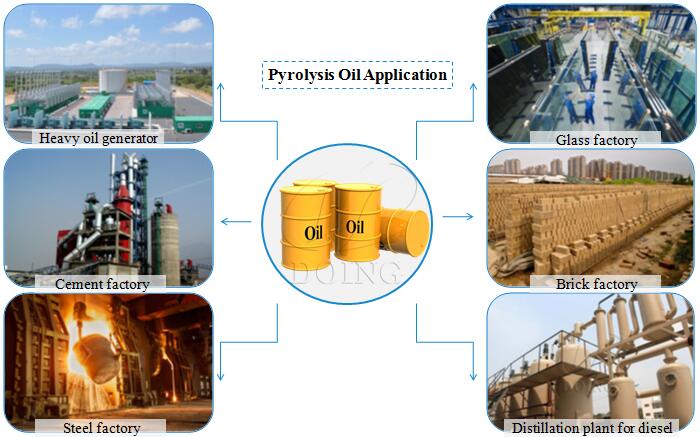

Plastic oil (45-52%) application

plastic pyrolysis oil plant

Plastic pyrolysis oil application

1. Can be widely used as industrial fuel materials for burning.

2. If further refined to diesel or gasoline, the oil can be used in low speed engines such as digging machine, road roller or loading machine, etc.

3. It can help in relieving energy crisis.

Carbon black (30-35%) application

pyrolysis plant

Carbon black application

1. The carbon black can be used for construction bricks with clay or used as fuel.

2. If further processed by Doing group carbon black processing plant, the carbon black can be deep processed into N220, N330 Carbon black, which has higher value and wider applications.

3. It can be made into pellet or briquette for burning, or further processed into color master batch as basic material to make pipes, cable jacket etc.

Technical parameter of plastic recycling process pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of plastic recycling process pyrolysis plant,sale plastic recycling process pyrolysis plant.provide client plastic recycling process pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide plastic recycling process pyrolysis plant project report ,financial analysis and plastic recycling process pyrolysis plant cost to clients.
  • 4.Send engineer Installation plastic recycling process pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating plastic recycling process pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure plastic recycling process pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Plastic recycling process pyrolysis plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
