Tyre pyrolysis oil extraction machine description in details

Tyre pyrolysis oil extraction machine product introduction

Update Time:2016-1-21  |   Pyrolysis oil plant

Tyre pyrolysis oil extraction machine
Tyre pyrolysis oil extraction machine product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

Tyre pyrolysis oil extraction machine



Tyre pyrolysis oil extraction machine

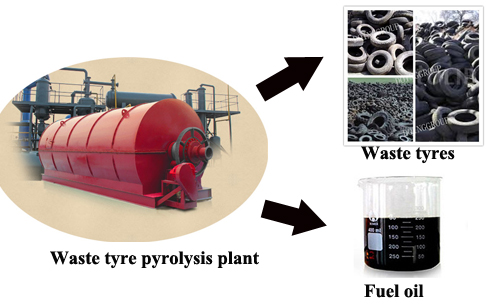

Tyre pyrolysis oil extraction machine is converting waste rubber ,waste tyre,waste plastic and oil sludge into useful resources ,such as fuel oil ,carbon black

Tyre pyrolysis oil extraction machine main feature


Tyre pyrolysis oil extraction machine is processing waste tyres

Pyrolysis is a special case of thermolysis, and is most commonly used for organic materials, being, therefore, one of the processes involved in charring. In general, pyrolysis of organic substances produces gas and liquid products and leaves a solid residue richer in carbon content. Extreme pyrolysis, which leaves mostly carbon as the residue, is called carbonization. The process is used heavily in the chemical industry, for example, to produce charcoal, activated carbon, methanol, and other chemicals from wood, to convert ethylene dichloride into vinyl chloride to make PVC, to produce coke from coal, to convert biomass into syngas, to turn waste into safely disposable substances, and for transforming medium-weight hydrocarbons from oil into lighter ones like gasoline. These specialized uses of pyrolysis may be called various names, such as dry distillation, destructive distillation, or cracking.


Tyre pyrolysis oil extraction machine final product and application


Fuel Oil (40% to 45%)

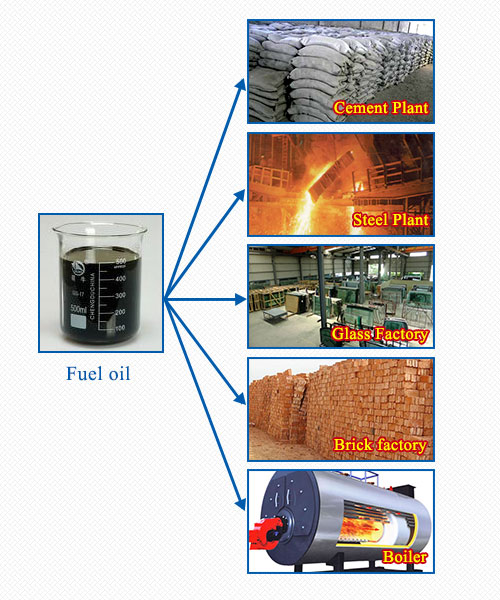

The main application of oil products produced by our waste tyre oil extraction machine is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.

Steel Wire (10% to 15%)
The third product of waste tyre oil extraction machine is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.

 Carbon Black Powder (30% to 35%)
The second product ofwaste tyre oil extraction machine  is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive.



Technical parameter of tyre pyrolysis oil extraction machine
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of tyre pyrolysis oil extraction machine,sale tyre pyrolysis oil extraction machine.provide client tyre pyrolysis oil extraction machine designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide tyre pyrolysis oil extraction machine project report ,financial analysis and tyre pyrolysis oil extraction machine cost to clients.
  • 4.Send engineer Installation tyre pyrolysis oil extraction machine,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating tyre pyrolysis oil extraction machine;no waste emission.
  • 4.Auto welding to ensure tyre pyrolysis oil extraction machine life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Tyre pyrolysis oil extraction machine :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
