Waste tyre recycling to fuel oil pyrolysis plant product introduction

Waste tyre recycling to fuel oil pyrolysis plant product photo

Waste tyre recycling to fuel oil pyrolysis plant is a set of waste recycling equipment which can convert waste tyre into useful fuel oil through pyrolysis reaction. After the pyrolysis working of waste recycling to fuel oil pyrolysis plant, you can get fuel oil, carbon black, steel wire and syn-gas, which all have wide applications and large markets to generate huge profit for our customers.

Then this passage will provide a detailed introduction for the waste tyre recycling to fuel oil pyrolysis plant.

DOING waste tyre recycling to fuel oil pyrolysis plant

Products application and profits from waste tyre recycling to fuel oil pyrolysis plant

Fuel oil: a kind of heavy oil, which can be used in heavy oil machines, such as cement plant, steel plant, glass plant, brick plant, boiler heating, etc. Also, it can be further refined into diesel to enlarge its applications.

Carbon black: It has a calorific value comparable to high-grade coal; therefore, it can be used as fuel either in pulverized or briquetted form. And it can also be used to make new rubber products or used as paints.

Products application of waste tyre recycling to fuel oil pyrolysis plant

Syn-gas: It can be used as heating fuel to heat the waste tyre recycling to fuel oil pyrolysis plant directly to save much operation costs.

Steel wire: It can be sold directly or be remelted.

And to make a clearer understanding of the profits obtained from waste tyre recycling to fuel oil pyrolysis plant for our customers, DOING made a profit analysis based on the final products application, market survey and customers' feedback:

DOING waste tyre recycling to fuel oil pyrolysis plant profit analysis

Working process of DoingGroup's Waste tyre recycling to fuel oil pyrolysis plant(take the batch type pyrolysis plant as an example):

1. Feeding the waste tyres into the reactor and making sure both the feeding door and slagging door are closed tightly.

2. Heating the pyrolysis reactor. With the rising of temperature, the waste tyre will be pyrolyzed into oil gas.

3. Condensing the oil gas through the cooling system. The pyrolysis oil gas enters the condensing system and is liquefied into heavy oil and falls into the oil tank.

Waste tyre recycling to fuel oil pyrolysis plant work process

4. Cleaning the tail smoke. The tail gas goes through the tail-gas cleaning system, after purifying, it will be transported back to pyrolysis reactor as heating fuel. And the final generated exhaust gas from pyrolysis reactor heating will be purified with the desulfurization tower to meet the emission standards in various regions.

5. Discharging the carbon black. When the temperature in the reactor is cooled to below 40°C, the carbon black in the furnace will be discharged through the underground sealing device to avoid secondary pollution to the environment.

6. Pulling out the steel wire. After discharging the carbon black, opening the feeding door, and pulling out the steel wire as soon as possible better control it within 5~10 minutes.

Main features and advantages of DOING waste tyre recycling to fuel oil pyrolysis plant:

1. Safety

Doing waste tyre recycling to fuel oil pyrolysis plant possesses strict quality control system and professional safety devices guarantee the plant running safely and wins a good reputation from customers. And in addition to safety valve, pressure gauge, temperature sensor, alarm device, water seal and other conventional installation devices, DOING also has the patented device-negative pressure vacuum device, improving the whole safe performance of the waste tyre recycling to fuel oil pyrolysis plant.

Safety device of waste tyre recycling to fuel oil pyrolysis plant

2. Energy saving

Combustible gas that cannot be liquefied will be recycled and used as fuel to heat the reactor. The reuse of this gas can save fuel costs in the production process of waste tyre recycling to fuel oil pyrolysis plant.

3. Environmental friendly

Professional environmental protection systems, such as tail-gas cleaning system and desulfurization tower, ensure our waste tyre recycling to fuel oil pyrolysis plant runs zero pollution and the exhaust gas can meet the emission standards in different countries

Environmental waste tyre recycling to fuel oil pyrolysis plant

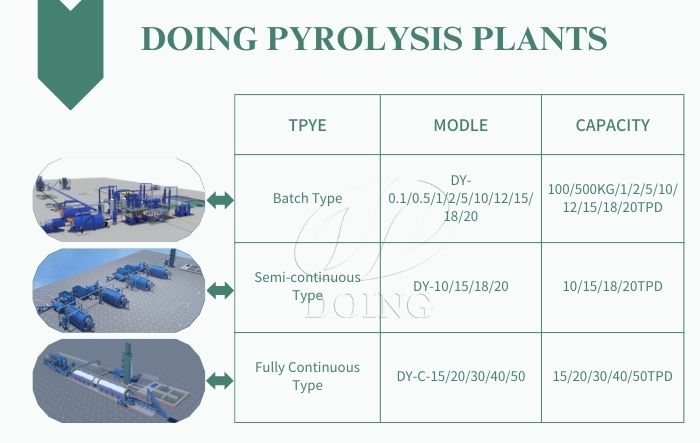

4. Various types and choices

DOING waste tyre recycling to fuel oil pyrolysis plant has three types with different capacities for your reference, cost-effective batch type design, high efficiency semi-continuous type and high automation and large production fully continuous type. Also, DOING engineers can provide customized schemes based on your requirements.

DOING waste tyre recycling to fuel oil pyrolysis plant with various types

Now, more and more people have realized the lucrative and efficient of waste recycling to fuel oil pyrolysis plant. If you are also interested in this plant, welcome to contact us! DOING has cooperated with many customers and has abundant experience to help our customers set up waste tyre recycling to fuel oil pyrolysis plant projects. If you want to invest in this business or visit our manufacturing factory, just feel free to contact us!
