Continuous waste plastic pyrolysis plant description in details

Continuous waste plastic pyrolysis plant product introduction

Update Time:2017-12-23  |   Pyrolysis plant

Continuous waste plastic pyrolysis plant
Continuous waste plastic pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

pyrolysis plant

Continuous waste plastic pyrolysis plant

As the application of the plastic products becomes wider and wider, the pollution caused by plastic waste is also a huge problem. Some of the developed countries have put many emphasis on developing the plastic waste recycling technology.

The pyrolysis technology is a new invention, and the Continuous waste plastic pyrolysis plant can turn the plastic waste into fuel oil, carbon black and combustible gas. The plastic pyrolysis process is harmless to the environment and operator, in addition, when you first use the continuous waste plastic pyrolysis plant, we will assign you the professional technician, who can help you in installing and running the plant. So you can operate the plant easily.

Continuous waste plastic pyrolysis plant advantage

continuous pyrolysis plant

Continuous waste plastic pyrolysis plant

1: Fully automatic with low labour cost
Our fully conitnuous waste plastics pyrolysis plant is controlled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.
2:Fully pyrolysis for high oil output
Our fully continuous waste plastics pyrolysis plant adapts to multiple reactor design which can make fully pyrolysis of waste plastics, thus to get high oil output.
3:Big capacity
Also due to continuous feeding and discharge system, and unique multiple reactor design, our fully automatic continuous waste plastics pyrolysis plant can process at least 10 tons waste plastics per day, up to 100T/D.
4: Internal rotating for continuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve he real sense of continuous process. But our continuous waste plastics pyrolysis reactor adapts internal rotating method, which no need to worry about the sealing of the external rotating system.Continuous working save time and energy
5:Long working life
During the continuous pyrolysis process, reactor is heated by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors.

Fully continuous waste plastic pyrolysis plant is a very good investment, not only can efficiently deal with a large number of abandoned plastic, turn waste into treasure, but also can avoid environmental pollution caused by landfill or burning these waste.

plastic pyrolysis plant

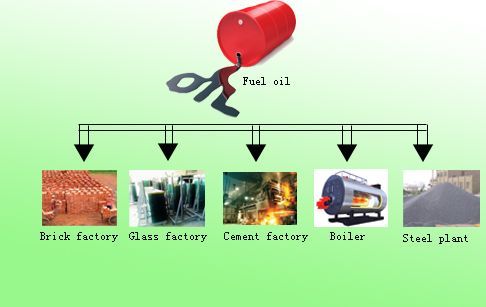

Fuel oil application

Fuel oil from waste tyre are used in below industries

A.power plant factory
 B.glass factory
C.cement factory
 D.ceramic fatory
 E.aluminum factory
 F.boiler factory
G.central heating factory
H.painting factory

Carbon black application

continuous pyrolysis plant

Carbon black application


Carbon Black is the main product recycled by Pyrolysis technology. The amount of recycled carbon black is 30% to 35% (depending on the type of tyres) of the total amount of scrap tyres recycled in the system. Carbon black is used as raw material or main ingredient in many industries and the chemical structure of carbon black strengthens, lengthens the endurance, and improves the coloring features of the materials.

Carbon black produced by Pyrolysis process (CBp) is more economical compared to carbon black produced primarily from petroleum and is more price-efficient to be used as an ingredient in the industries listed;

* Electric cable jacketing
* Conveyor band
* Carrier Bands
* Hose and doormat
* Black nylon bag
* Rubber additive
* Automotive spare parts
* Heat isolation
* Black colorant in rubber materials
* Plastic pipes
* Industrial rubber products
* Fire fighting



Technical parameter of continuous waste plastic pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of continuous waste plastic pyrolysis plant,sale continuous waste plastic pyrolysis plant.provide client continuous waste plastic pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide continuous waste plastic pyrolysis plant project report ,financial analysis and continuous waste plastic pyrolysis plant cost to clients.
  • 4.Send engineer Installation continuous waste plastic pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating continuous waste plastic pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure continuous waste plastic pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Continuous waste plastic pyrolysis plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
