Waste plastic pyrolysis plant description in details

Waste plastic pyrolysis plant product introduction

Update Time:2016-1-21  |   Plastic pyrolysis plant

Waste plastic pyrolysis plant
Waste plastic pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

Waste plastic pyrolysis plant


  Waste plastic pyrolysis plant

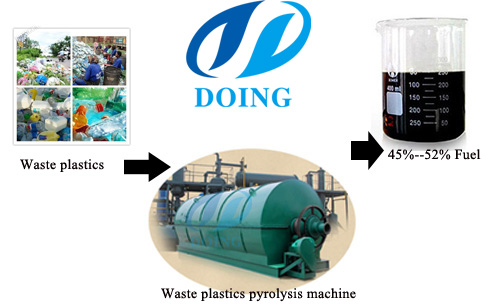

Waste plastic pyrolysis plant  is to conver waste plastic into fuel.The raw material of waste plastic pyrolysis plant  is waste plastic , waste tyre ,waste rubber and so on .After pyrolysis of waste plastic pyrolysis plant ,we can get fuel oil ,carbon black and exhaust gas.

Waste plastic pyrolysis plant working processing


Waste plastic pyrolysis plant is processing waste plastic

1.Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste plastic will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the plastic can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.
 After all these steps, you can start another batch.

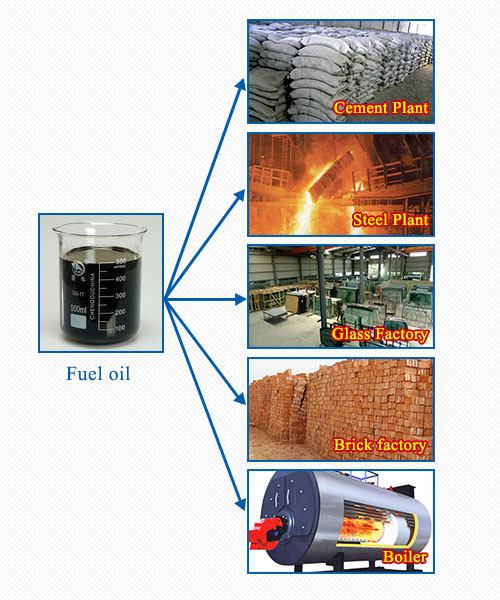

Waste plastic pyrolysis plant final product and application








Technical parameter of waste plastic pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of waste plastic pyrolysis plant,sale waste plastic pyrolysis plant.provide client waste plastic pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide waste plastic pyrolysis plant project report ,financial analysis and waste plastic pyrolysis plant cost to clients.
  • 4.Send engineer Installation waste plastic pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating waste plastic pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure waste plastic pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Waste plastic pyrolysis plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
